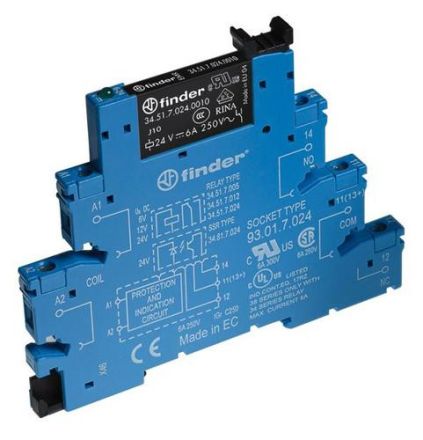

Finder 38.51.3.125.0060 coupling relay

In stock
SKU: 272755
€23.79
Into a basketIn the basketGo

Overview

Coupling relay for DIN rail with screw connections, 1 changeover contact 6 A / 250 V AC, coil voltage 125 V AC, contact material AgNi, LED, residual current suppression and EMC interference suppression are integrated in the socket.

Property Value
Number of contacts as changeover contact: 1
Rated control supply voltage Us at AC 50 Hz: 110 to 125 V
Rated control supply voltage Us at AC 60 Hz: 110 to 125 V
Type of voltage for actuation: AC
Design of the electrical connection: Screw connection
Drive, polarity: unpolarized
Height: 87.9 mm
Width: 6.2 mm
Depth: 75.6 mm
Switching behavior of the drive: monostable
Type of switching contact: Single contact
With positively guided Contacts: no
With removable terminals: no
Complete device with base: yes
Protection class (IP): IP20
Rated current: 6 A
With LED display: yes

Characteristics

Complete device with baseYes
Drive, polarityUnpolarized
Type of switching contactSingle contact
Switching behavior of the driveMonostable
With positively guided contactsNo
Minimal order10 pcs
ManufacturerFinder
HAN38.51.3.125.0060
GTIN8012823232119
Number of contacts as changeover1
Design of the electrical connectionScrew connection
Rated control supply voltage Us at AC 50 Hz110 to 125 V
Rated control supply voltage Us at AC 60 Hz110 to 125 V
Width6.2 mm
Height87.9 mm
With LED displayYes
With removable clampsNo
Rated current6A
IP protection)IP20
Voltage type for actuationAC
Depth75.6 mm
