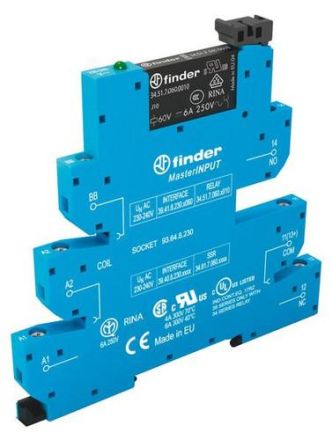

Finder 39.41.0.024.5060 EMR coupling relay Master INPUT

In stock

SKU: 272836

Price on request

€15.80

€0

Overview

MasterInput narrow coupling relay for DIN rail, with screw connections, modular design, 1 changeover contact for 6 A, contact material AgNi - hard gold-plated, for advantageous connection of sensors to the PLC input, LED display, terminals A2, BB and 11 can be bridged, coil voltage 24 V AC/DC

Property	Value
Number of contacts as changeover contacts:	1
Rated control supply voltage Us at AC 50 Hz:	24 V
Rated control supply voltage Us at AC 60 Hz:	24 V
Rated control supply voltage Us at DC:	24 V
Voltage type for actuation:	AC/DC
Design of the electrical connection:	screw connection
Drive, polarity:	unpolarized
Height:	94.3 mm
Width:	6.2 mm
Depth:	90.7 mm
Switching behavior of the drive:	monostable
Type of switching contact:	Single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP20
Rated current:	6 A
With LED display:	yes
