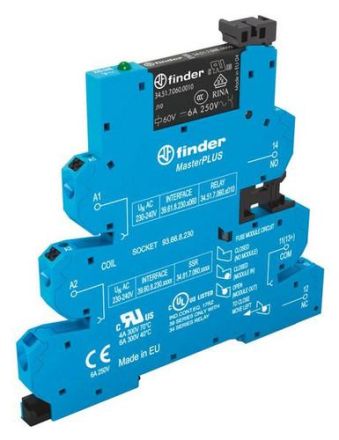

Finder 39.61.3.230.0060 EMR coupling relay MasterPLUS Push-In technology

In stock

SKU: 273038

Price on request

€20.64

€0

Overview

MasterPlus narrow coupling relay for DIN rail, with push-in terminals, modular design, 1 changeover contact for 6 A, contact material AgNi, can be used universally as a coupling relay in the input to the PLC or in the output of the PLC to control actuators, LED display, terminals A1 or A2 and 11 can be bridged, output fuse module type 093.63 for 5 x 20 mm fine fuses can be used instead of the dummy plug, coil voltage 230 V AC. Design: with residual voltage suppression.

Property	Value
Number of contacts as changeover contacts:	1
Rated control supply voltage Us at AC 50 Hz:	230 to 240 V
Rated control supply voltage Us at AC 60 Hz:	230 to 240 V
Type of voltage for actuation:	AC
Design of the electrical connection:	Plug connection
Drive, Polarity:	unpolarized
Height:	94.3 mm
Width:	6.2 mm
Depth:	90.7 mm
Switching behavior of the drive:	monostable
Type of switching contact:	single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP20
Rated current:	6 A
With LED display:	yes
