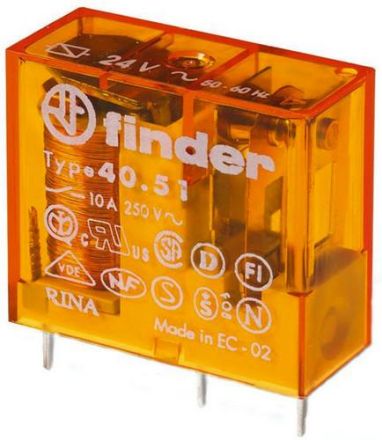

Finder 40.51.8.048.0000 PCB relay

In stock

SKU: 271818

Price on request

€7.35

€0

Overview

Print relay 1 changeover contact (AgNi) for 10 A / 250 V AC, contact pin pitch: 5.0 mm coil data: 48 V AC, 1.2 VA, 1350 Ohm, relay protection class: RT II - see technical explanations Notes for automatic soldering process

Property	Value
Number of contacts as changeover contact:	1
Rated control supply voltage Us at AC 50 Hz:	48 V
Rated control supply voltage Us at AC 60 Hz:	48 V
Type of voltage for actuation:	AC
Design of the electrical connection:	Plug connection
Drive, polarity:	unpolarized
Height:	25 mm
Width:	12.4 mm
Depth:	29 mm
Switching behavior of the drive:	monostable
Type of switching contact:	Single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	no
Protection class (IP):	IP20
Rated current:	10 A
With LED display:	no
