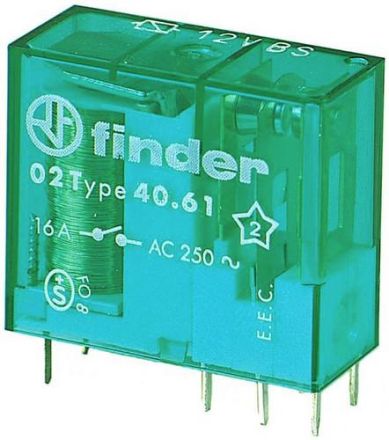

Finder 40.61.6.012.4000 bistable print relay

In stock

SKU: 271939

Price on request

€15.80

€0

Overview

Print relay, bistable (remanence relay with one coil), 1 changeover contact for 16 A / 250 V AC Contact pin pitch: 5.0 mm Contact material: AgSnO2, coil data: 12 V AC/DC*, 1 W / 1 VA, 130 Ohm *external components are required for resetting and controlling with an AC voltage (see catalog series 40) Relay protection type: RT II - see technical explanations Notes for automatic soldering process

Property	Value
Number of contacts as changeover contact:	1
Rated control supply voltage Us at AC 50 Hz:	12 V
Rated control supply voltage Us at AC 60 Hz:	12 V
Rated control supply voltage Us at DC:	12 V
Type of voltage for actuation:	AC/DC
Design of the electrical connection:	PCB connection
Drive, polarity:	polarized
Height:	25 mm
Width:	12.4 mm
Depth:	29 mm
Switching behavior of the drive:	Remanence
Type of switching contact:	Single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	no
Protection class (IP):	IP20
Rated current:	16 A
With LED display:	no
