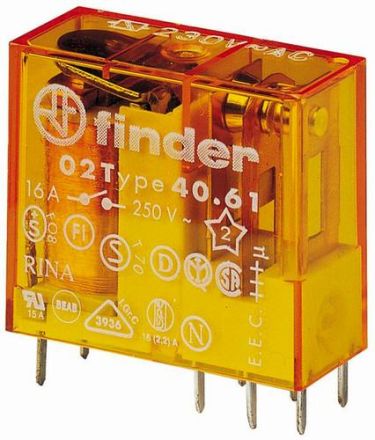

Finder 40.61.8.230.0000 Plug-in/print relay

In stock

SKU: 273172

Price on request

€9.20

€0

Overview

Series 40, plug-in/print relay, contact material AgNi, for 8 A, 10 A or 16 A / 250 V AC, DC coils: 0.5 W, AC coils 1.2 VA, relay protection class: RT II, safe separation between coil and contacts. Contact pin pitch: 5.0 mm

Property	Value
Number of contacts as changeover contacts:	1
Rated control supply voltage Us at AC 50 Hz:	230 V
Rated control supply voltage Us at AC 60 Hz:	230 V
Voltage type for actuation:	AC
Design of the electrical connection:	other
Drive, polarity:	unpolarized
Height:	25 mm
Width:	12.4 mm
Depth:	29 mm
Switching behavior of the drive:	monostable
Type of switching contact:	single contact
With forcibly guided contacts:	no
With removable terminals:	no
Complete device with base:	no
Protection class (IP):	IP20
Rated current:	16 A
With LED display:	no
