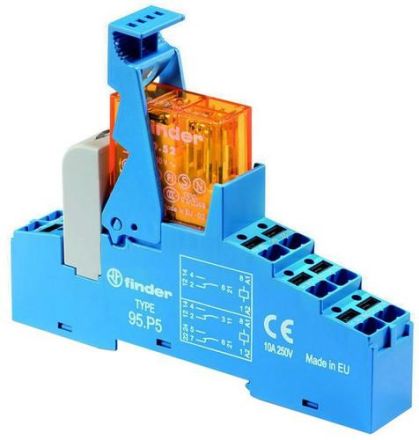

Finder 48.P6.8.230.0060 coupling relay 1W 16A coil 230VAC

In stock

SKU: 272713

Price on request

€15.56

€0

Overview

Series 48, coupling relay, modular design with switching relays and accessories from relay series 40, for DIN rail, for 8 A, 10 A or 16 A / 250 V AC, DC coils: 1 W, AC coils 1.2 VA, with integrated LED and EMC suppression and holding/dismantling clip.

Property	Value
Number of contacts as changeover contact:	1
Rated control supply voltage Us at AC 50 Hz:	230 V
Rated control supply voltage Us at AC 60 Hz:	230 V
Voltage type for actuation:	AC
Design of the electrical connection:	Plug connection
Drive, polarity:	unpolarized
Height:	95.5 mm
Width:	15.8 mm
Depth:	75 mm
Switching behavior of the drive:	monostable
Type of switching contact:	Single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP20
Rated current:	16 A
With LED display:	yes
