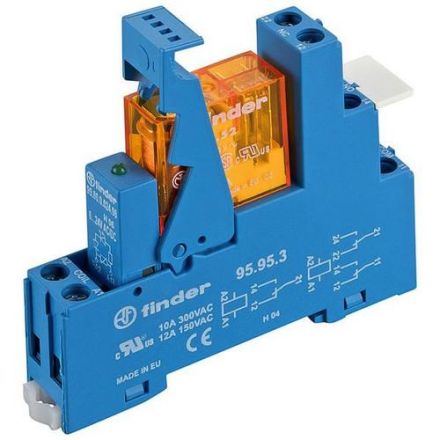

Finder 49.52.8.024.0060 coupling relay

In stock
SKU: 272566
€14.33
Into a basketIn the basketGo

Overview

Series 49, assembled coupling relay, 2 changeover contacts 8 A, used switching relays can be easily replaced, coils for AC or DC, 8 mm air and creepage distance between coil and contacts, 'safe separation' according to 0160 / EN 60335, for 35 mm rail, end number 5050 and 5060: contact material hard gold plated

Property Value
Number of contacts as changeover contacts: 2
Rated control supply voltage Us at AC 50 Hz: 24 V
Rated control supply voltage Us at AC 60 Hz: 24 V
Voltage type for actuation: AC
Design of the electrical connection: screw connection
Drive, polarity: unpolarized
Height: 81.9 mm
Width: 15.5 mm
Depth: 75 mm
Switching behavior of the drive: monostable
Type of switching contact: single contact
With positively guided contacts: no
With removable terminals: no
Complete device with base: yes
Protection class (IP): IP20
Rated current: 8 A
With LED display: yes

Characteristics

Complete device with baseYes
Drive, polarityUnpolarized
Type of switching contactSingle contact
Switching behavior of the driveMonostable
With positively guided contactsNo
ManufacturerFinder
HAN49.52.8.024.0060
GTIN8012823118024
Number of contacts as changeover2
Design of the electrical connectionScrew connection
Rated control supply voltage Us at AC 50 Hz24V
Rated control supply voltage Us at AC 60 Hz24V
Width15.5 mm
Height81.9 mm
With LED displayYes
With removable clampsNo
Rated current8A
IP protection)IP20
Voltage type for actuationAC
Depth75 mm
Finder 49.52.8.024.0060 coupling relay
Finder 49.52.8.024.0060 coupling relay
€14.33
Into a basketIn the basketGo
