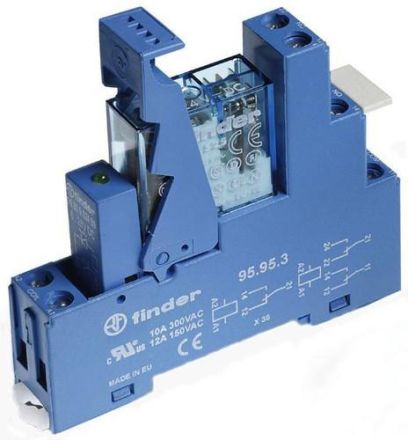

Finder 49.52.9.024.0050 coupling relay

In stock

SKU: 272573

Price on request

€8.54

€0

Overview

Series 49, monostable coupling relay for medium power, including socket, dimensions 75 x 15.5 x 75 mm (LxWxH), plastic housing, operating power 650 mW (DC coil), 1.2 VA (AC coil)

Property	Value
Number of contacts as changeover contact:	2
Rated control supply voltage Us for DC:	24 V
Type of voltage for actuation:	DC
Design of the electrical connection:	Screw connection
Drive, polarity:	polarized
Height:	81.9 mm
Width:	15.5 mm
Depth:	75 mm
Switching behavior of the drive:	monostable
Type of switching contact:	single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP20
Rated current:	8 A
With LED display:	yes
