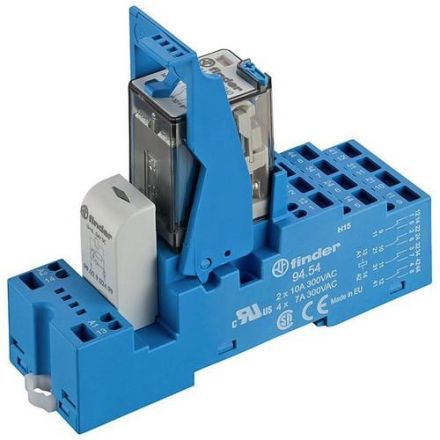

Finder 58.54.9.012.0050 coupling relay

Finder 58.54.9.012.0050 coupling relay

In stock

SKU: 272987

Price on request

€17.23

€0

Into a basketIn the basketGo

Overview

Coupling relay for DIN rail with tension spring terminals, 4 changeover contacts 7 A / 250 V AC, coil voltage 12 V DC, contact material AgNi, with integrated LED and EMC suppression

Property	Value
Number of contacts as changeover contacts:	4
Rated control supply voltage Us at DC:	12 V
Type of voltage for actuation:	DC
Design of the electrical connection:	Spring-loaded connection
Drive, polarity:	Poled
Height:	78.4 mm
Width:	27 mm
Depth:	86.9 mm
Switching behavior of the drive:	monostable
Type of switching contact:	Single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with Socket:	yes
Protection class (IP):	IP20
Rated current:	7 A
With LED display:	yes

Characteristics

Complete device with baseYes

Drive, polarityPolarized

Type of switching contactSingle contact

Switching behavior of the driveMonostable

With positively guided contactsNo

Minimal orderPcs

Manufacturer

HAN58.54.9.012.0050

GTIN8012823367903

Number of contacts as changeover4

Design of the electrical connectionSpring-loaded connection

Rated control supply voltage Us at DC12V

Width27 mm

Height78.4 mm

With LED displayYes

With removable clampsNo

Rated current7 A

IP protection)IP20

Voltage type for actuationDC

Depth86.9 mm
