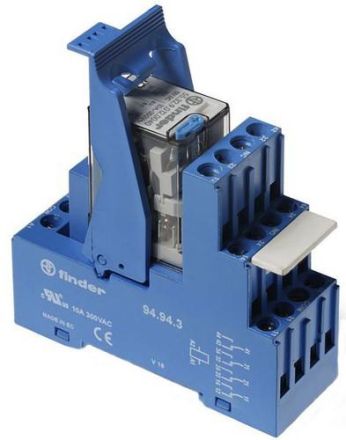

Finder 59.34.9.024.5050 coupling relay

In stock
SKU: 272564
€24.05
Into a basketIn the basketGo

Overview

Series 59, mounted coupling relay, 4 changeover contacts 7 A, used switching relays can be easily replaced, with lockable test button and mechanical switch position indicator, coils for AC or DC, ambient temperature up to + 70 °C, for 35 mm rail, contact material: hard gold-plated

Property Value
Number of contacts as changeover contacts: 4
Rated control supply voltage Us for DC: 24 V
Type of voltage for actuation: DC
Design of the electrical connection: Screw connection
Drive, polarity: polarized
Height: 79.7 mm
Width: 27 mm
Depth: 86.1 mm
Switching behavior of the drive: monostable
Type of switching contact: Single contact
With positively guided contacts: no
With removable terminals: no
Complete device with base: yes
Protection class (IP): IP20
Rated current: 7 A
With LED display: yes

Characteristics

Complete device with baseYes
Drive, polarityPolarized
Type of switching contactSingle contact
Switching behavior of the driveMonostable
With positively guided contactsNo
ManufacturerFinder
HAN59.34.9.024.5050
GTIN8012823221793
Number of contacts as changeover4
Design of the electrical connectionScrew connection
Rated control supply voltage Us at DC24V
Width27 mm
Height79.7 mm
With LED displayYes
With removable clampsNo
Rated current7 A
IP protection)IP20
Voltage type for actuationDC
Depth86.1 mm
