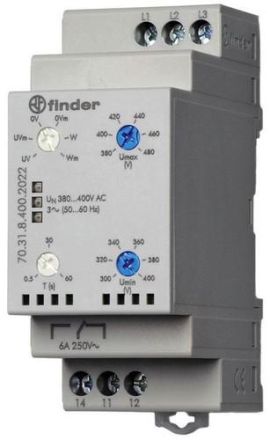

Finder 70.31.8.400.2022 MF phase monitoring 3-phase

In stock

SKU: 272200

Price on request

€71.21

€0

Overview

3-phase mains monitoring for series installation, measuring range 300 - 480 V, 1 changeover contact for 6 A (AC1), contact material AgNi, monitoring of: undervoltage, overvoltage, over/undervoltage range, phase sequence, phase failure, voltage error memory selectable, colored LED status display

Property	Value
Min. adjustable response delay time:	1 s
Design of the electrical connection:	Screw connection
Max. permissible release delay time:	60 s
Number of contacts as changeover contacts:	1
Min. adjustable release delay time:	0.5 s
Max. permissible response delay time:	1 s
Width:	35 mm
Height:	88.8 mm
Depth:	60.8 mm
Overvoltage detection function:	yes
Rated control supply voltage Us at AC 50 Hz:	220 to 510 V
With removable terminals:	no
Phase sequence monitoring function:	yes
Phase failure detection function:	yes
Undervoltage detection function:	yes
Asymmetry detection function:	no
Voltage measuring range:	300 to 480 V
Rated control supply voltage Us at AC 60 Hz:	220 to 510 V
