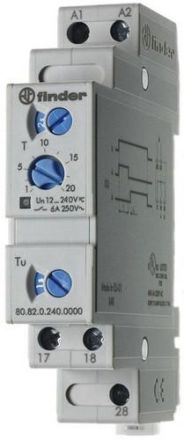

Finder 80.82.0.240.0000 Star-delta relay

In stock

SKU: 274526

Price on request

€50.98

€0

Overview

Star-delta relay, changeover time 50..60 ms, for DIN rail, 17.5 mm wide, 2 NO contacts for 6 A / 250 V AC, contact material AgNi, time range: 0.05 s - 20 min, supply voltage: 24 ...240 V AC(50/60 Hz)/DC, relay protection class: IP 20

Property	Value
Number of outputs, delayed, NO contacts:	2
Design of the electrical connection:	screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Voltage type for actuation:	AC/DC
Time range:	0.1 to 1200 s
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 240 V
Width:	17.5 mm
Depth:	60.8 mm
Height:	88.8 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
On-delay function:	no
Off-delay function:	no
Function, flicker-on:	no
Function, flicker-off:	no
Function, star/delta:	yes
Function, pulse-forming:	no
Function, flashing, starting with a pause, fixed time:	no
Function, flashing, starting with a pulse, fixed time:	no
Function, clocking, starting with a pause, variable:	no
Function clocked starting with pulse, variable:	no
With semiconductor output:	no
Rated current:	6 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
