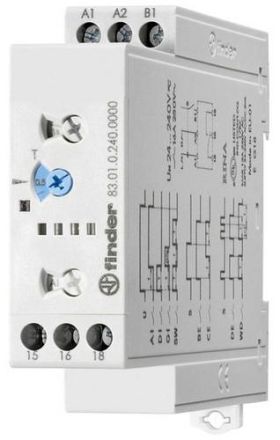

Finder 83.01.0.240.0000 Multifunction time relay

In stock

SKU: 271734

Price on request

€37.46

€0

Overview

Multifunctional time relay for DIN rail, 22.5 mm wide, 1 changeover contact for 16 A / 250 V AC, contact material AgNi, functions: response delay, pulse-on contact, pulse relay (flasher) symmetrical pulse starting, release delay, response/release delay, pulse-on contact with B1, watchdog function (WD) - switches off if the start contact remains closed for longer than the set time, 8 time ranges: 0.05 s - 10 days, supply voltage: 24-240 V AC/DC (50/60 Hz) relay protection class: IP 20

Property	Value
Number of outputs, delayed, changeover contact:	1
Design of the electrical Connection:	Screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Voltage type for actuation:	AC/DC
Time range:	0.05 to 864000 s
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 240 V
Width:	22.5 mm
Depth:	100.3 mm
Height:	86.2 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
Function on-delayed:	yes
Off-delayed function:	yes
On-delayed function:	yes
Off-delayed function:	no
Star/delta function:	no
Pulse-forming function:	yes
Flashing function starting with pause, fixed time:	no
Flashing function starting with pulse, fixed time:	yes
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	no
With semiconductor output:	no
Rated current:	16 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
