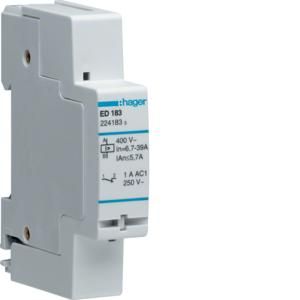

Hager ED183 load shedding relay

In stock

SKU: 157378

Price on request

€22.59

€0

Overview

Load shedding relay rated current range 6, 7-39A. Load shedding relay to protect against overloads in the power supply. Connection in series with the priority consumer and subordinate consumers are switched off via an opener contact.

Property	Value
Rated voltage:	230 V
Rated current:	6.7 to 39 A
Response current:	3.1 to 5.7 A
Max. drop-out delay:	10 ms
Max. Continuous current:	39 A
Rated current (control contacts):	1 A
Max. switching voltage (control contacts):	230 V
Max. Switching capacity (control contacts):	230 VA
Electrical service life (control contacts):	1000000 switching cycles
Mechanical service life (control contacts):	10000000 switching cycles
Voltage type:	AC
Mounting type:	DIN rail
Width in pitch units:	1
Installation depth:	60 mm
Protection class (IP):	IP40
Number of contacts as normally closed:	1
