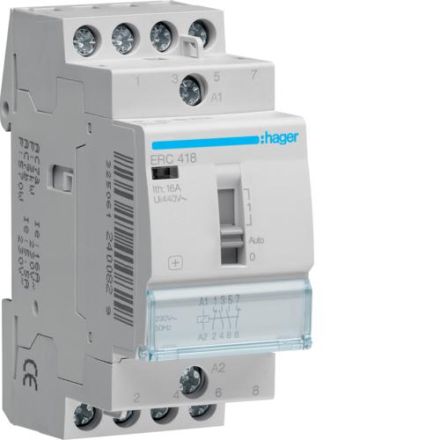

Hager ERC418 installation relay 16A 2S+2OE 230V

In stock
SKU: 156888
€31.74
Into a basketIn the basketGo

Overview

Installation relay 16A 2 normally open and 2 normally closed 230V. Installation relay for pulse control of circuits up to max. 16 A, in accordance with EN 61095 and DIN0637-3 as well as contact protection in accordance with DIN0106 Part 100. With contact position indicator through display window, integrated labeling field and suitable for subsequent attachment of additional equipment. Notes: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to every second device.

Property Value
Type of operating voltage: AC
Protection class (IP): IP2X
Max. incandescent lamp load: 1100 W
Rated operating current: 16 A
Rated operating voltage: 400 V
Max. fluorescent lamp load (parallel compensated): 490 VA
Max. fluorescent lamp load (duo circuit): 1200 VA
Max. Fluorescent lamp load: 570 VA
Additional equipment possible: yes
Slider for manual switching: yes
Type of actuating voltage: AC
Installation depth: 60 mm
Rated actuating voltage: 230 V
Usage category: 7
Number of contacts as normally open: 2
Number of contacts as opener: 2

Characteristics

Rated operating current16 A
Max. fluorescent lamp load570 VA
ManufacturerHAGER
HANERC418
GTIN3250612400829
Number of contacts as normally open2
Number of contacts as opener2
Rated operating voltage400V
Installation depth60 mm
IP protection)IP2X
Additional equipment possibleYes
