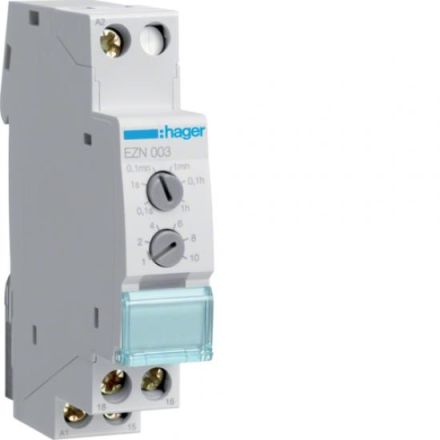

Hager EZN003 time relay 1W 10A single action

In stock

SKU: 159406

Price on request

€56.10

€0

Overview

Time relay, 1W 10A, with momentary contact. Time relay for delaying switching operations on or off. Operating status display of the switching output via an LED on the device. Time settings from the front of the device. Contact protection according to DIN0106/100.

Property	Value
Nominal switching current at 250 V AC:	8 A
Width in modular spacing:	1
Number of changeover switches:	1
Installation height:	58 mm
Mounting type:	DIN rail
Function:	wipe switch-on relay
Supply voltage:	195 to 253 V
Switching capacity of incandescent lamps:	450 W
Switching capacity of inductive fluorescent lamps:	500 VA
1. Time range:	0.1 to 10
2. Time range:	0.1 to 10
Control voltage 1:	230 V
Control voltage type 1:	AC
Frequency of control voltage 1:	50 to 60 Hz
Type of supply voltage:	AC/DC
Control voltage type 2:	AC/DC
Type of operation:	analog with single function
Frequency of control voltage 2:	50 to 60 Hz
1st time range unit:	seconds/hours
2nd time range unit:	seconds/hours
Control voltage 2:	12 to 48 V
