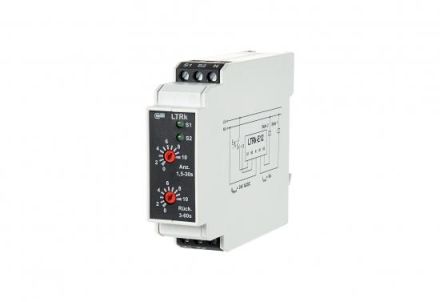

The fan timer relay was specially designed to control two-stage motors. The on- and off delays are separate and continuously adjustable. It is controlled using a two-stage switch. The motor contactors are controlled using the two mutually locked outputs. How it works: 1. If level 2 is selected directly, level 1 is switched on first for the set start-up time so that the fan can run up to the nominal speed. Level 2 is then activated. 2. When switching from level 2 back to level 1 or to the InchOffInch position, a switch-off delay is triggered so that the fan can first coast to a stop before level 1 is activated. 3. If level 1 has already been switched on for at least the set start-up time, the switchover to level 2 takes place immediately. When switching from level 1 to 2, the interruption may last a maximum of 250 ms. If this time is exceeded, the process is as described in point 1. Operating voltage AC 230 V AC Operating voltage AC/DC 24 V AC/DC Recovery time approx. 20 ms Output / voltage corresponds to operating voltage Output / current max. 6 A AC1 / 1.5 A AC3 Response time level 1 0 ms Response time level 2 approx. 30 ms Pick-up delay adjustable up to 30 s Switch-off delay adjustable up to 60 s Dimensions W x H x D 22.5 x 75 x 95 mm Weight 150 g Operating temperature range -5 °C to +55 °C Storage temperature range -20 °C to +70 °C Protection class housing / terminals IP40 / IP20
