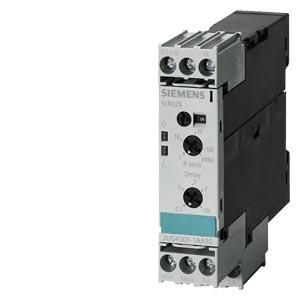

Siemens 3UG4501-1AA30 analog monitoring relay from 2 to 200kOhm

In stock
SKU: 345679
€91.01
Into a basketIn the basketGo

Overview

Analog monitoring relay Fill level monitoring Resistance monitoring from 2 to 200 kOhm over- and under-range Supply voltage AC/DC 24 V DC and AC 50 to 60 Hz without galvanic isolation from the measuring circuit 2 point or 1 point control Tripping delay 0.5 to 10 s 1 changeover contact Screw connection Successor product for 3UG3501-1AC20 Analog adjustable fill level monitoring relay SIRIUS 3UG4 for monitoring the fill level of conductive liquids to protect against overflow, dry running or leakage. Worldwide use thanks to wide voltage supply and internationally validated. Device can be changed without rewiring thanks to removable terminals. Can be flexibly adapted to different conductive liquids by analog setting of the sensitivity. Inflow or outflow function can be selected. The adjustable tripping delay time can also compensate for wave movements. Other resistance sensors can also be connected, e.g. B. suitable photoresistors, temperature sensors, resistance-based position sensors, etc.In addition to screw connection technology, the devices are also available with a spring-loaded connection for a quick, maintenance-free and vibration-proof connection.Accessories include individually shortenable 2- and 3-pole wire electrodes for easy installation from above/below, as well as bracket electrodes for installation from the side for larger filling heights and minimal space requirements. Other accessories, such as device identification plates, push-in tabs and cover caps, are standardized for all relays.SIRIUS relays - a program for all occasions.

Property Value
Number of contacts as changeover contact: 1
Max. permissible pick-up delay time: 10 s
Max. permissible release delay time: 10 s
Min. adjustable pick-up delay time: 0.5 s
Min. adjustable release delay time: 0.5 s
Width: 22.5 mm
Height: 92 mm
Depth: 91 mm
With removable terminals: yes
Number of electrode inputs: 1
Adjustable response sensitivity: yes
Rated control supply voltage Us at AC 50 Hz: 24 V
Rated control supply voltage Us at AC 60 Hz: 24 V
Rated control supply voltage Us at DC: 24 V

Characteristics

HAB3UG4501-1AA30 from 2 to 200kOhm
ManufacturerSIEMENS
HAN3UG4501-1AA30
GTIN4011209665293
Response sensitivity adjustableYes
Number of contacts as changeover1
Rated control supply voltage Us at AC 50 Hz24V
Rated control supply voltage Us at AC 60 Hz24V
Rated control supply voltage Us at DC24V
Width22.5 mm
Height92 mm
With removable clampsYes
Depth91 mm
