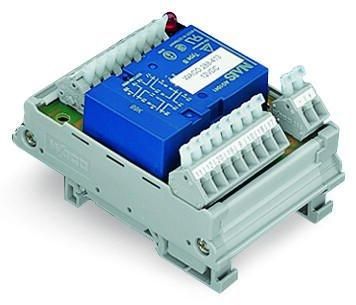

Wago 288-414 SDS SF4 24V AC/DC relay module

Wago 288-414 SDS SF4 24V AC/DC relay module

In stock

SKU: 519418

Price on request

€80.57

€0

Into a basketIn the basketGo

Overview

Relay module with positively guided contacts, nominal input voltage AC/DC 24 V, 4 NO contacts and 4 NC contacts, limiting continuous current 6 A, 64 mm width, 2.50 mm², gray

Property	Value
Number of contacts as NO contacts:	4
Number of contacts as NC contacts:	4
Rated control supply voltage Us at AC 50 Hz:	24 V
Rated control supply voltage Us at AC 60 Hz:	24 V
Rated control supply voltage Us at DC:	24 V
Type of voltage for actuation:	AC/DC
Design of the electrical connection:	spring-loaded connection
Drive, polarity:	unpolarized
Height:	85 mm
Width:	63.5 mm
Depth:	40 mm
Switching behavior of the drive:	monostable
Type of switching contact:	Single contact
With positively guided contacts:	yes
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP20
Rated current:	6 A
With LED display:	yes

Characteristics

Complete device with baseYes

Drive, polarityUnpolarized

Type of switching contactSingle contact

Switching behavior of the driveMonostable

With positively guided contactsYes

HAB288-414 SDS SF4 24V AC/DC

Manufacturer

HAN288-414

GTIN4045454192563

Number of contacts as normally open4

Number of contacts as opener4

Design of the electrical connectionSpring-loaded connection

Rated control supply voltage Us at AC 50 Hz24V

Rated control supply voltage Us at AC 60 Hz24V

Rated control supply voltage Us at DC24V

Width63.5 mm

Height85 mm

With LED displayYes

With removable clampsNo

Rated current6A

IP protection)IP20

Voltage type for actuationAC/DC

Depth40 mm

Wago 288-414 SDS SF4 24V AC/DC relay module

Wago 288-414 SDS SF4 24V AC/DC relay module

Price on request

€80.57

€0

Into a basketIn the basketGo
