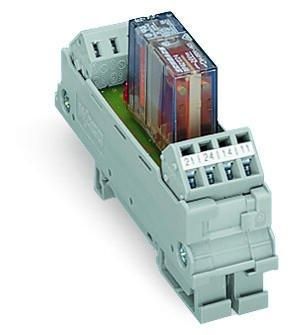

Wago 288-512 relay module

In stock

SKU: 522511

Price on request

€45.01

€0

Overview

Relay module, nominal input voltage AC/DC 24 V, 2 changeover contacts, limiting continuous current 6 A, 23 mm width, 2.50 mm², grey

Property	Value
Number of contacts as changeover contacts:	2
Rated control supply voltage Us at AC 50 Hz:	24 V
Rated control supply voltage Us at AC 60 Hz:	24 V
Rated control supply voltage Us at DC:	24 V
Voltage type for Actuation:	AC/DC
Design of the electrical connection:	spring-loaded connection
Drive, polarity:	unpolarized
Height:	85 mm
Width:	22.5 mm
Depth:	48 mm
Switching behavior of the drive:	monostable
Type of switching contact:	single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP20
Rated current:	6 A
With LED display:	no
