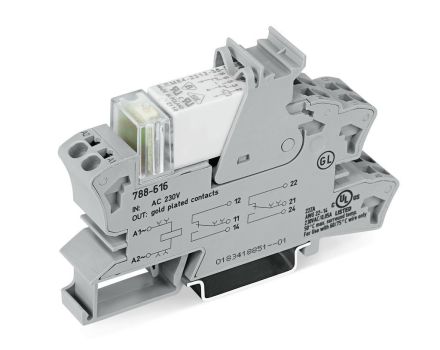

Wago 788-616 3-pin 230VAC OCC relay modules

In stock
SKU: 519999
€21.02
Into a basketIn the basketGo

Overview

Relay module, nominal input voltage AC 230 V, 2 changeover contacts, limiting continuous current 8 A, with gold contacts, status indicator red, 15 mm width, 2.50 mm², grey

Property Value
Number of contacts as changeover contacts: 2
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 230 V
Type of voltage for actuation: AC
Version of the electrical connection: spring-loaded connection
drive, polarity: polarized
height: 86 mm
width: 15 mm
depth: 54 mm
switching behavior of the drive: monostable
type of switching contact: single contact
with positively guided contacts: no
With removable terminals: no
Complete device with base: yes
Protection class (IP): IP20
Rated current: 8 A
With LED display: yes

Characteristics

Complete device with baseYes
Drive, polarityPolarized
Type of switching contactSingle contact
Switching behavior of the driveMonostable
With positively guided contactsNo
HAB788-616 3-pin 230VAC OCC
ManufacturerWago
HAN788-616
GTIN4045454484804
Number of contacts as changeover2
Design of the electrical connectionSpring-loaded connection
Rated control supply voltage Us at AC 50 Hz230V
Rated control supply voltage Us at AC 60 Hz230V
Width15 mm
Height86 mm
With LED displayYes
With removable clampsNo
Rated current8A
IP protection)IP20
Voltage type for actuationAC
Depth54 mm
