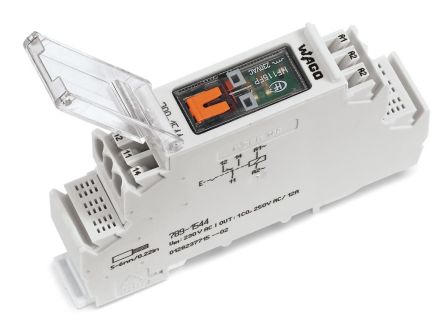

Wago 789-1544 230VAC 12A 1W manual override switching relay module

Wago 789-1544 230VAC 12A 1W manual override switching relay module

In stock

SKU: 520158

Price on request

€42.07

€0

Into a basketIn the basketGo

Overview

Relay module, nominal input voltage AC 230 V, 1 changeover contact, limiting continuous current 12 A, with manual operation, status display red, 18 mm width, 2.50 mm²

Property	Value
Number of contacts as changeover contact:	1
Rated control supply voltage Us at AC 50 Hz:	230 V
Rated control supply voltage Us at AC 60 Hz:	230 V
Type of voltage for actuation:	AC
Design of the electrical Connection:	Spring-loaded connection
Drive, polarity:	unpolarized
Height:	90 mm
Width:	17.5 mm
Depth:	55 mm
Switching behavior of the drive:	monostable
Type of switching contact:	Single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP20
Rated current:	12 A
With LED display:	yes

Characteristics

Complete device with baseYes

Drive, polarityUnpolarized

Type of switching contactSingle contact

Switching behavior of the driveMonostable

With positively guided contactsNo

HAB789-1544 230VAC 12A 1W Manual confirmation

Manufacturer

HAN789-1544

GTIN4050821386780

Number of contacts as changeover1

Design of the electrical connectionSpring-loaded connection

Rated control supply voltage Us at AC 50 Hz230V

Rated control supply voltage Us at AC 60 Hz230V

Width17.5 mm

Height90 mm

With LED displayYes

With removable clampsNo

Rated current12A

IP protection)IP20

Voltage type for actuationAC

Depth55 mm
