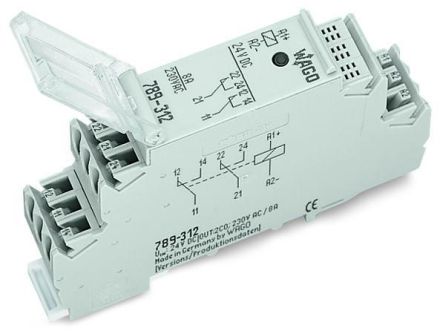

Wago 789-312 24VDC 8A 2W in DIN rail mounting housing. Switching relay module

In stock
SKU: 519980
€38.94
Into a basketIn the basketGo

Overview

Relay module, nominal input voltage DC 24 V, 2 changeover contacts, limiting continuous current 8 A, status display red, 18 mm width, 2.50 mm², gray

Property Value
Number of contacts as changeover contacts: 2
Rated control supply voltage Us at DC: 24 V
Type of voltage for actuation: DC
Design of the electrical connection: Spring-loaded connection
Drive, polarity: polarized
Height: 90 mm
Width: 17.5 mm
Depth: 55 mm
Switching behavior of the drive: monostable
Type of switching contact: Single contact
With positively guided contacts: no
With removable terminals: no
Complete device with base: yes
Protection class (IP): IP20
Rated current: 8 A
With LED display: yes

Characteristics

Complete device with baseYes
Drive, polarityPolarized
Type of switching contactSingle contact
Switching behavior of the driveMonostable
With positively guided contactsNo
HAB789-312 24VDC 8A 2W in DIN rail mounting housing.
ManufacturerWago
HAN789-312
GTIN4045454313043
Number of contacts as changeover2
Design of the electrical connectionSpring-loaded connection
Rated control supply voltage Us at DC24V
Width17.5 mm
Height90 mm
With LED displayYes
With removable clampsNo
Rated current8A
IP protection)IP20
Voltage type for actuationDC
Depth55 mm
