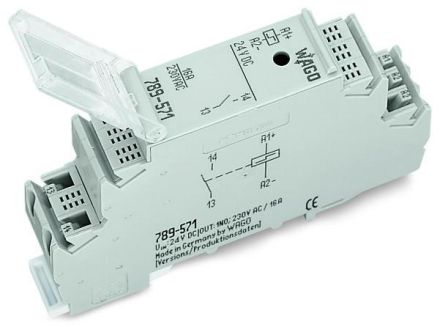

Wago 789-571 Relay module

In stock

SKU: 522519

Price on request

€49.34

€0

Overview

Lambda switch module, nominal input voltage DC 24 V, 1 normally open contact, limiting continuous current 16 A, status display red, 18 mm width, 2.50 mm², gray

Property	Value
Number of contacts as normally open contacts:	1
Rated control supply voltage Us at DC:	24 V
Type of voltage for actuation:	DC
Design of the electrical connection:	Spring-loaded connection
Drive, polarity:	polarized
Height:	90 mm
Width:	17.5 mm
Depth:	55 mm
Switching behavior of the drive:	monostable
Type of switching contact:	Single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP20
Rated current:	16 A
With LED display:	yes
