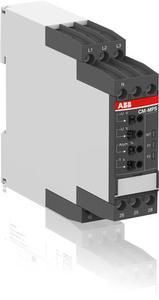

ABB Stotz-Kontakt CM-MPS.21S, three-phase monitoring relay 2We, 0.0.1-30s, L1-L2-L3-N=3x180-280VAC, 1SVR730885R3300

ABB Stotz-Kontakt CM-MPS.21S, three-phase monitoring relay 2We, 0.0.1-30s, L1-L2-L3-N=3x180-280VAC, 1SVR730885R3300

In stock

SKU: 197564

Price on request

€219.93

€0

Overview

The CM series three-phase monitoring relays can ensure reliable and continuous monitoring of a three-phase network and the trouble-free and economical operation of machines and systems. This is why the CM series three-phase monitoring relays monitor the phase voltages, the phase sequence, the phase asymmetry, the presence of all phases and the neutral conductor as required.

Property	Value
Min. adjustable response delay time:	0.2 s
Design of the electrical connection:	Screw connection
Type of voltage for actuation:	AC
Max. permissible release delay time:	30 s
Number of contacts as changeover contacts:	2
Min. adjustable release delay time:	0.1 s
Max. permissible response delay time:	0.2 s
Width:	22.5 mm
Height:	85.6 mm
Depth:	103.7 mm
Overvoltage detection function:	yes
Rated control supply voltage Us at AC 50 Hz:	180 to 280 V
With removable terminals:	no
Phase sequence monitoring function:	yes
Phase failure detection function:	yes
Undervoltage detection function:	yes
Asymmetry detection function:	yes
Voltage measuring range:	180 to 280 V
Rated control supply voltage Us at AC 60 Hz:	180 to 280 V
