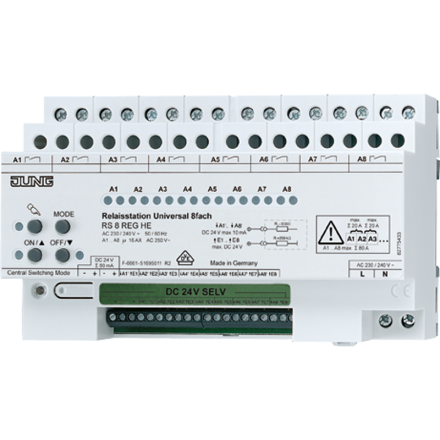

Universal relay station 8-way REG housing 8 TE with electronic manual operation and LED status display 8 normally open contacts Intended use Switching lighting Switching single-phase fan motors Switching electrically operated blinds, roller shutters, awnings and similar hangings Installation on top hat rail in sub-distribution board Operation using sensor modules, touch sensor modules or unlit installation buttons Product features On-site operation: the relay station can be operated using the keypad without any control points being connected. Control of feedback LEDs on the control points. The relay station has control outputs A1' ... A8' for this purpose. Switch operation Touch operation Blind operation with slat adjustment Mixed operation of switching, touching and blinds is possible Central function Central ON, Central OFF: Switching the load outputs on or off together Parallel connection of two relay stations possible Nominal voltage: AC 230/240 V ~, 50/60 Hz Power loss: 12.5 W Standby power: 0.5 W Length of control cable: max. 100 m Number of control points Sensor module (item no.: SM 1608): max. 4 (also for relay/dim stations connected in parallel) Touch sensor modules 24 V AC/DC (normally open): depends on the touch sensor module, current consumption note Touch sensor module (item no.: 4008 TSM): max. 4 (also with relay/dim stations connected in parallel) Control points Voltage: DC 24 V SELV Current load: 80 mA Switching inputs E1 ... E8 Resistance Ri: 200 k Control voltage: DC 24 V SELV Control outputs A1' ... A8' Resistance Ra: 330 Control voltage: DC 24 V SELV Current load: 10 mA Connection mains and load outputs Connection type: screw terminals single-wire: 1 x 1.5 ... 4 mm2 fine-wire without wire end sleeve: 1 x 0.75 ... 4 mm2 fine-wire with Wire end ferrule: 1 x 0.5 ... 2.5 mm2 Connection of switching inputs / control outputs / control points Connection type: screw terminals single-wire: 1.5 mm² fine-stranded without wire end ferrule: 1 mm² fine-stranded with wire end ferrule: 0.75 mm² Load outputs A1 ... A8 Contact type: potential-free normally open contact (-contact) Switching capacity per load output: AC 250 V ~ / 16 AX Switching current of load outputs: 80 A Switching current of adjacent load outputs: 20 A Loads per output Ohmic load: 3000 W Capacitive load: 16 A / max. 140 µF Blind/fan motors: 1380 VA Inrush current: max. 800 A (200 µs)max. 165 A (20 ms) Lamp loads Incandescent lamps: 3000 W HV halogen lamps: 2500 W LV halogen lamps with electronic transformers: 1500 W inductive transformers: 1200 VA Fluorescent lamps uncompensated: 1000 W parallel compensated: 1160 W / 140 µF Duo circuit: 2300 W / 140 µF Electronic ballast: type-dependent Minimum load: AC 12 V, 100 mA Ambient temperature: 5 ... +45 °C Storage temperature: 25 ... +70 °C Installation width: 144 mm (8 TE) Locking time for change of direction: 1 s Duty cycle for blind operation: 2 min
