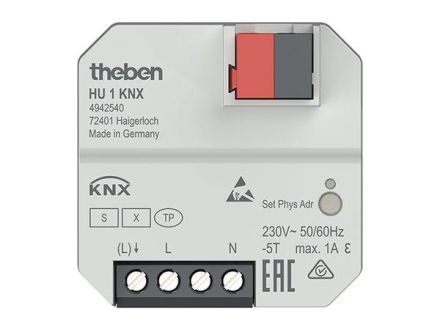

Theben 4942540 HU 1 KNX flush-mounted heating actuator

In stock
SKU: 707822
€153.39
Into a basketIn the basketGo

Overview

KNX 1-way heating actuator flush-mounted, Silent control of thermal actuators 230 V AC, Secure commissioning and communication through support of KNX Data Secure, Function selection as heating actuator (constant or switching control value) or as heating controller (integrated temperature controller heating/cooling), Integrated valve protection function and summer operation, Easy installation thanks to particularly compact housing, 2 binary inputs for potential-free contacts such as buttons, switches, window contacts, temperature sensor (input I2), Integrated temperature monitoring for increased operational reliability e.g. in the event of overload

Property Value
Number of outputs: 1
Switching voltage: 230 V
KNX bus system: yes
Max. Switching current (resistive load): 1 A
Max. Output current: 1 A
Protection class (IP): other
Bus system radio bus: no
Bus system LON: no
Bus system Powernet: no
Other bus systems: without
Mounting type: Flush-mounted
With bus connection: yes
Control value continuous: yes
Switching control value: yes
Valve protection function: yes
Manual control: no
Bidirectional radio: no
Removable bus module: no
KNX radio bus system: no
Min. depth of device box: 40 mm

Characteristics

Number of outputs1
HABHU 1 KNX
ManufacturerTHEBEN
HAN4942540
GTIN4003468491522
Other bus systemsWithout
Bus system radio busNo
KNX bus systemYes
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemNo
Radio bidirectionalNo
Min. depth of the device box40 mm
With bus connectionYes
Mounting typeFlush-mounted
IP protection)Other
