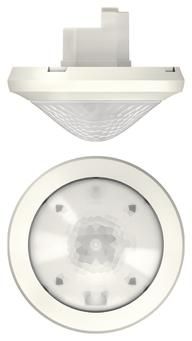

Theben 1030600 motion detector theMova P360-100 UP WH white flush-mounted

Theben 1030600 motion detector theMova P360-100 UP WH white flush-mounted

In stock

SKU: 229130

Price on request

€115.64

€0

Overview

Motion detector for ceiling mounting, round detection area, automatic brightness-dependent control for lighting, mixed light measurement, adjustable switch-off delay, adjustable sensitivity, remote parameterization

Property	Value
Depth:	110 mm
Width:	110 mm
Height:	83 mm
Design:	Motion detector
Color:	white
Rated voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 3000 lx
Protection class (IP):	IP40
Max. switching capacity:	2300 W
Type of voltage:	AC
Max. Range to one side:	12 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	10 s
Max. Duty cycle:	60 min
Creep-under protection/rear field monitoring:	no
Temperature:	-15 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. range, frontal:	12 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	24 m
Switch-off delay:	3600 s
Horizontal detection angle:	0 to 360 °
Frequency:	50 to 60 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	yes
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Screw terminal
Antibacterial treatment:	no
Impact resistance:	IK04
Min. inrush current:	0.1 A
Diameter:	110 mm
Installation width:	48 mm
Installation depth:	37 mm
Installation diameter:	48 mm
Min. Depth of the device box:	46 mm

Characteristics

Bridging switchNo

With signal unitNo

Response brightness5 to 3000 lx

Forced shutdownNo

Max. inrush current10 A

Scanning angle360 °

Forced switching onNo

Manufacturer

HAN1030600

GTIN7612748005105

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Width110 mm

Diameter110 mm

Installation width48 mm

Installation diameter48 mm

Installation depth37 mm

Detection field diameter on floor24m

Detection angle horizontal0 to 360 °

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeNo

Height83 mm

Constant light controlNo

Max. duty cycle60 min

Max. range frontal12m

Max. range to one side12m

Max. switching capacity2300W

Min. duty cycle10s

Min. depth of the device box46 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010

Impact resistanceIK04

IP protection)IP40

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-15 to 50 °C

Depth110 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
