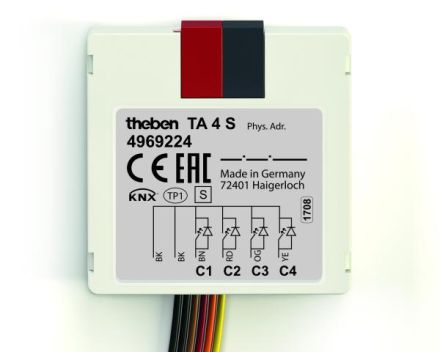

Theben 4969224 TA 4 S KNX UP 4-way button interface

In stock
SKU: 389646
€85.88
Into a basketIn the basketGo

Overview

4-way binary input button interface, 6-pin cable connection, NTC inputs for actual temperature detection, Can be installed in flush-mounted boxes with conventional buttons/switches, Free assignment of functions: switch/button, dimming, blinds, value transmitter, counter, sequences, temperature measurement, LED control, Flexible LED control, thanks to the increased output current of 3 mA, commercially available LEDs and low-current LEDs can be controlled, Inputs can be re-parameterized to outputs with parameterizable flashing and pulsing function, Identification of the wire pairs via color coding, Side recesses on the housing for the fastening claws of the switches/buttons

Property Value
Mounting type: Flush-mounted
Number of inputs: 4
LED control: yes
Input voltage: 5 V
Protection class (IP): IP20
External query voltage required: yes
KNX bus system: yes
Radio bus system: no
Powernet bus system: no
LON bus system: no
Other bus systems: without
With bus connection: yes
With LED display: no
Bidirectional radio: no
KNX radio bus system: no
Removable bus module: no
Type of input voltage: AC/DC
Min. depth of the device box: 13 mm

Characteristics

Number of inputs4
Input voltage5 V
HABTA 4 S KNX UP 4-way
ManufacturerTHEBEN
HAN4969224
GTIN4003468491270
Other bus systemsWithout
Bus system radio busNo
KNX bus systemYes
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemNo
Radio bidirectionalNo
Min. depth of the device box13 mm
With bus connectionYes
With LED displayNo
Mounting typeFlush-mounted
IP protection)IP20
