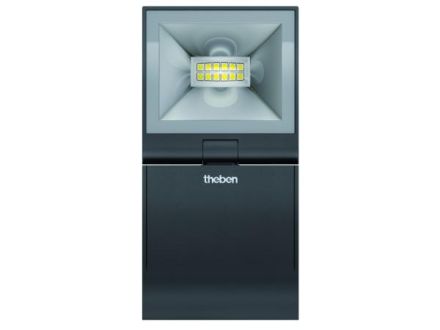

Theben 1020722 theLeda S10L BK black LED spotlight

Theben 1020722 theLeda S10L BK black LED spotlight

In stock

SKU: 389639

Price on request

€89.02

€0

Overview

LED spotlight 10 W (equivalent to approx. 140 W halogen spotlight) for wall mounting, 4000 K, integrated heat sink in housing color, direct LED for maximum light output, high-tech matrix LED module, wall lighting possible by rotating by 180°

>no

Property	Value
Max. System power:	10 W
Rated luminous flux according to IEC 62722-2-1:	840 lm
Color temperature:	4000 K
Nominal voltage:	230 V
Protection class (IP):	IP55
Socket:	without
With control gear:	yes
Beam angle:	wide beam 41-80°
Material of the housing:	Plastic
With light source:	yes
Housing color:	black
Length:	80 mm
Width:	50 mm
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Height/depth:	160 mm
Protection class:	I
Light distribution:	symmetrical
Operating device:	not required
Impact resistance:	IK04
Light source:	LED not replaceable
Luminaire with limited surface temperature 'D-mark':	no
With motion detector:	no
Reflector:	high gloss
Luminous flux:	840 lm
Cover material:	transparent plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for wall mounting:	yes
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for Built-in installation:	no
Suitable for cable system:	no
Surface:	painted
Brushed surface:	no
LED nominal current at constant current:	10 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated) :
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	reflector
Light emission:	direct
Energy efficiency class of the built-in light source:	A++, A+, A (LED)
Energy efficiency index (EEI) of the power supply:	other
Total harmonic distortion (THD):	27
Rated service life L80/B50 at 25 °C:	60000 h
Protection class (NEMA) :	4
Rated ambient temperature according to IEC62722-2-1:	45 °C
Lamp luminous efficacy:	80 lm/W
Type of wiring:	Termination
Power factor:	0.95
Number of poles:	4
Conductor cross-section:	2.5 mm
Connectable conductor cross-section:	2.5 mm
Connection type:	Screw terminal
Luminous efficacy:	80 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG0
Color consistency (McAdam ellipse) :	SDCM6

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

Connectable conductor cross-section2.5 mm

Rated service life L80/B50 at 25 °C60000 h

HABTheLeda S10L BK black

Manufacturer

HAN1020722

GTIN4003468100851

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-1840lm

Rated ambient temperature according to IEC62722-2-145°C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Width50 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorBlack

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth160 mm

LED nominal current at constant current10mA

Lamp luminous efficacy80lm/W

Power factor0.95

Conductor cross-section2.5 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy80lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux840lm

Light distributorReflector

Light distributionSymmetrical

Length80 mm

Max. system performance10W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

SurfacePainted

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles4

ReflectorHigh gloss

Impact resistanceIK04

Protection classI

Voltage typeAC

AdjustabilityRotatable and pivotable

Cover materialPlastic transparent

Housing materialPlastic
