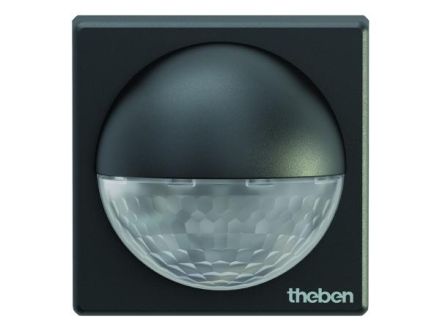

Theben 1010201 theLuxa R180 BK black motion detector

Theben 1010201 theLuxa R180 BK black motion detector

In stock

SKU: 389638

Price on request

€56.63

€0

Overview

Motion detector for wall mounting, secure protection against manipulation thanks to robust housing design, concealed controls under the secured front cover, zero-crossing switching, automatic switching depending on brightness and movement, teach-in function, mixed light measurement, including screws and dowels

Feature	Value
Depth:	66 mm
Width:	82 mm
Height:	82 mm
Design:	Motion detector
Color:	black
Nominal voltage:	230 V
RAL number (similar):	9005
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	2 to 200 lx
Protection class (IP):	IP55
Max. Switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	6 m
Scan angle:	180 °
Suitable for wall mounting:	yes
Min. duty cycle:	2 s
Max. Duty cycle:	30 min
Creep-under protection/rear field monitoring:	no
Temperature:	-25 to 45 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	no
Max. range, frontal:	12 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	12 m
Switch-off delay:	1800 s
Horizontal detection angle:	0 to 180 °
Frequency:	50 to 60 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Forced switching on:	no
Suitable for ceiling mounting:	no
Connection type:	Screw terminal
Antibacterial treatment:	no
Impact resistance:	IK04
Min. inrush current:	0.1 A

Characteristics

ColorBlack

Bridging switchNo

With signal unitNo

Response brightness2 to 200 lux

Forced shutdownNo

Max. inrush current10 A

Scanning angle180 °

Forced switching onNo

HABTheLuxa R180 BK black

Manufacturer

HAN1010201

GTIN4003468100783

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Width82 mm

Detection field diameter on floor12m

Detection angle horizontal0 to 180 °

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeNo

Height82 mm

Constant light controlNo

Max. duty cycle30 min

Max. range frontal12m

Max. range to one side6m

Max. switching capacity2300W

Min. duty cycle2s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9005

Impact resistanceIK04

IP protection)IP55

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-25 to 45 °C

Depth66 mm

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
