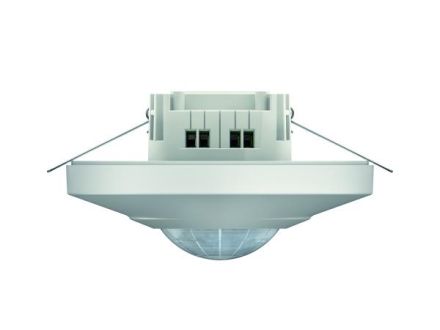

Theben 1030045 LUXA 103-100 UA WH white acoustic function motion detector

Theben 1030045 LUXA 103-100 UA WH white acoustic function motion detector

In stock

SKU: 389626

Price on request

€90.59

€0

Overview

Motion detector for ceiling mounting with acoustic function, round detection area, automatic brightness-dependent control for lighting, mixed light measurement, brightness values and switch-off delay adjustable

Property	Value
Depth:	112 mm
Width:	112 mm
Height:	73 mm
Design:	Motion detector
Color:	white
Rated voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	10 to 2000 lx
Protection class (IP):	IP40
Max. switching capacity:	2000 W
Type of voltage:	AC
Max. Range to one side:	6 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	5 s
Max. Duty cycle:	30 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 45 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	no
Max. range, frontal:	6 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	12 m
Control current:	10 mA
Switch-off delay:	1800 s
Horizontal detection angle:	0 to 360 °
Frequency:	50 to 60 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced switch-off:	no
Animal corridor:	no
Networkable:	yes
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Screw terminal
Antibacterial treatment:	no
Impact resistance:	IK04
Min. Inrush current:	0.1 A
Diameter:	112 mm
Installation width:	48 mm
Installation depth:	38 mm
Installation diameter:	48 mm
Min. depth of device box:	46 mm

Characteristics

ColorWhite

Bridging switchNo

With signal unitNo

Response brightness10 to 2000 lx

Forced shutdownNo

Max. inrush current10 A

Scanning angle360 °

Forced switching onNo

HABLUXA 103-100 UA WH white acoustic function

Manufacturer

HAN1030045

GTIN4003468101148

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Width112 mm

Diameter112 mm

Installation width48 mm

Installation diameter48 mm

Installation depth38 mm

Detection field diameter on floor12m

Detection angle horizontal0 to 360 °

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeNo

Height73 mm

Constant light controlNo

Max. duty cycle30 min

Max. range frontal6m

Max. range to one side6m

Max. switching capacity2000W

Min. duty cycle5s

Min. depth of the device box46 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010

Impact resistanceIK04

IP protection)IP40

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 45 °C

Depth112 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
