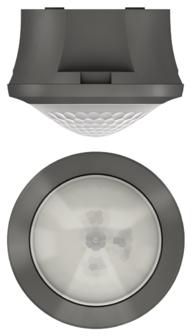

Theben 1030556 motion detector theMova S360-101 AP GR

Theben 1030556 motion detector theMova S360-101 AP GR

In stock

SKU: 229446

Price on request

€108.65

€0

Overview

Motion detector for ceiling installation, round detection area, automatic brightness-dependent control for lighting and HVAC, mixed light measurement, adjustable switch-off delay, adjustable sensitivity, preset values (remotely parameterizable)

Property	Value
Depth:	97 mm
Width:	97 mm
Height:	71 mm
Design:	Motion detector
Color:	gray
Rated voltage:	230 V
RAL number (similar):	7005
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	5 to 3000 lx
Protection class (IP):	IP54
Max. switching capacity:	2300 W
Type of voltage:	AC
Max. Range to one side:	4 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	10 s
Max. Duty cycle:	60 min
Creep-under protection/rear field monitoring:	no
Temperature:	-15 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. range, frontal:	4 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	8 m
Switch-off delay:	3600 s
Switch-on delay:	600 s
Horizontal detection angle:	0 to 360 °
Frequency:	50 to 60 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	yes
Forced shutdown:	no
Animal corridor:	no
Networkable:	yes
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Screw terminal
Antibacterial treatment:	no
Impact resistance:	IK04
Min. inrush current:	0.1 A
Diameter:	97 mm

Characteristics

Bridging switchNo

With signal unitNo

Response brightness5 to 3000 lx

Forced shutdownNo

Max. inrush current10 A

Scanning angle360 °

Forced switching onNo

Manufacturer

HAN1030556

GTIN7612748005082

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Width97 mm

Diameter97 mm

Detection field diameter on floor8m

Detection angle horizontal0 to 360 °

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlYes

Halogen freeNo

Height71 mm

Constant light controlNo

Max. duty cycle60 min

Max. range frontal4m

Max. range to one side4m

Max. switching capacity2300W

Min. duty cycle10s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)7005

Impact resistanceIK04

IP protection)IP54

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-15 to 50 °C

Depth97 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
