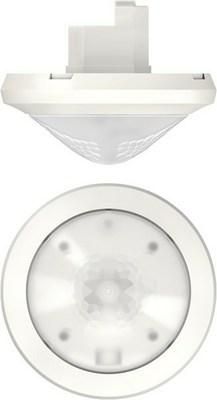

Theben 2010330 thePassa P360 SLAVE UP WH white slave UP presence detector

Theben 2010330 thePassa P360 SLAVE UP WH white slave UP presence detector

In stock

SKU: 389673

Price on request

€142.50

€0

Overview

Slave flush-mounted presence detector for ceiling mounting, for enlarging the detection range of a master device, detection range 30 x 4.5 m switchable to 15 x 4.5 m (for walking people) at a mounting height of 3 m, mounting height up to 6 m, remote controllable, sensitivity adjustable, operating voltage 110-230 V AC, 50/60 Hz, power consumption 0.1 W, protection class IP 54, white housing

Property	Value
Depth:	110 mm
Width:	110 mm
Height:	83 mm
Design:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Protection class (IP):	IP54
Voltage type:	AC
Max. range to one side:	15 m
Scan angle:	360 °
Suitable for wall mounting:	no
Creep-under protection/rear field monitoring:	no
Temperature:	-15 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. Frontal range:	15 m
Sensor type:	passive infrared
Optimal installation height:	3 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	30 m
Horizontal detection angle:	0 to 360 °
Frequency:	50 to 60 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bridging switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Screw terminal
Antibacterial treatment:	no
Impact resistance:	IK04
Min. inrush current:	0.1 A
Diameter:	110 mm
Installation width:	48 mm
Installation depth:	37 mm
Installation diameter:	48 mm
Min. depth of device box:	46 mm

Characteristics

ColorWhite

Bridging switchNo

With signal unitNo

Forced shutdownNo

Scanning angle360 °

Forced switching onNo

HABThePassa P360 SLAVE UP WH white

Manufacturer

HAN2010330

GTIN7612748006539

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionPresence detector

Surface finishFrosted

Width110 mm

Diameter110 mm

Installation width48 mm

Installation diameter48 mm

Installation depth37 mm

Detection field diameter on floor30m

Detection angle horizontal0 to 360 °

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeNo

Height83 mm

Constant light controlNo

Max. range frontal15m

Max. range to one side15m

Min. depth of the device box46 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height3m

RAL number (similar)9010

Impact resistanceIK04

IP protection)IP54

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-15 to 50 °C

Depth110 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
