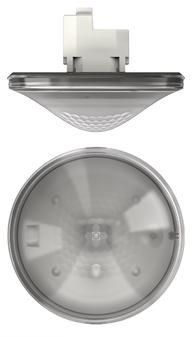

Theben 2070526 Presence detector thePrema S360 DALI UP GR grey

Theben 2070526 Presence detector thePrema S360 DALI UP GR grey

In stock

SKU: 229258

Price on request

€252.01

€0

Overview

DALI presence detector (PIR) for automatic lighting control with constant light control, square detection range, DALI master for max. 25 DALI ballasts, no assignment of DALI participants necessary, mixed light measurement, brightness setpoint and self-learning run-on time adjustable, safety light with stand-by brightness 1-25% run-on time adjustable, connection option for buttons for manual switching and dimming, switchable for fully or semi-automatic, optional remote controls, scene module with two built-in scenes

Property	Value
Max. Range to one side:	4 m
Optimal installation height:	2.5 m
Design:	Presence detector
Color:	gray
Mounting type:	Flush-mounted
Response brightness:	3000 lx
Protection class (IP):	IP40
Nominal voltage:	230 V
Sensor type:	passive infrared
Voltage type:	AC
Surface finish:	matt
Material:	plastic
Surface:	untreated
Material quality:	thermoplastic
Max. range, frontal:	4 m
Detection field diameter on floor:	8 m
Min. Duty cycle:	10 s
Max. Duty cycle:	60 min
Switch-off delay:	3600 s
RAL number (similar):	7005
Horizontal detection angle:	360 °
Temperature:	50 °C
Frequency:	50 Hz
Halogen-free:	no
Adjustable response brightness:	yes
Creep protection/rear field monitoring:	no
Constant light control:	yes
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	yes
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
Response sensitivity adjustable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	yes
Extension input:	yes
Forced switching on:	no
Scan angle:	360 °
Max. Presence range:	25 m
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Connection type:	screw terminal
Antibacterial treatment:	no
Impact resistance:	IK04
Min. Inrush current:	0.1 A
Width:	110 mm
Height:	77 mm
Depth:	110 mm
Diameter:	110 mm
Installation width:	48 mm
Installation depth:	40 mm
Installation diameter:	48 mm
Min. Depth of the device box:	46 mm

Characteristics

Bridging switchNo

With signal unitNo

Response brightness3000 lux

Forced shutdownNo

Scanning angle360 °

Forced switching onNo

Max. presence range25 m

Manufacturer

HAN2070526

GTIN7612748004627

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionPresence detector

Surface finishFrosted

Width110 mm

Diameter110 mm

Installation width48 mm

Installation diameter48 mm

Installation depth40 mm

Detection field diameter on floor8m

Detection angle horizontal360°

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeNo

Height77 mm

Constant light controlYes

Max. duty cycle60 min

Max. range frontal4m

Max. range to one side4m

Min. duty cycle10s

Min. depth of the device box46 mm

With DALI interfaceYes

With remoteNo

Mounting typeFlush-mounted

Extension inputYes

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2.5m

Impact resistanceIK04

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature50°C

Depth110 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
