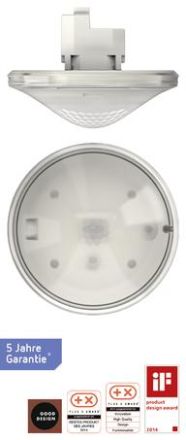

Theben 2070605 Presence detector thePrema S360-101 E UP WH white Master

In stock
SKU: 229261
€168.50
Into a basketIn the basketGo

Overview

Presence detector for ceiling mounting, square detection area, automatic presence and brightness-dependent control for lighting and HVAC, can be switched to fully or semi-automatic operation, teach-in function, self-learning follow-up time, mixed light measurement, light channel A: relay, switch-off delay adjustable, staircase light function, connection option for button or switch for manual switching, with automatic button/switch detection, channel H, presence potential-free, switch-on and switch-off delay adjustable, sensitivity adjustable, master/master or master/slave switching possible, easy setting of the energy-saving behavior with the new eco plus function, remote parameterizable

Property Value
Depth: 110 mm
Width: 110 mm
Height: 77 mm
Design: Presence detector
Color: white
Rated voltage: 230 V
RAL number (similar): 9010
Material: Plastic
Mounting type: Flush-mounted
Response brightness: 5 to 3000 lx
Protection class (IP): IP40
Max. switching capacity: 2300 W
Voltage type: AC
Max. range to one side: 4 m
Scan angle: 360 °
Suitable for wall mounting: no
Min. duty cycle: 10 s
Max. Duty cycle: 60 min
Creep-under protection/rear field monitoring: no
Temperature: 0 to 50 °C
Adjustable response brightness: yes
Adjustable response sensitivity: yes
Max. presence range: 25 m²
Max. frontal range: 4 m
Max. Inrush current: 10 A
Sensor type: passive infrared
Optimal installation height: 2.5 m
Surface finish: matt
Surface: untreated
Material quality: thermoplastic
Detection field diameter on floor: 8 m
Switch-off delay: 3600 s
Switch-on delay: 600 s
Horizontal detection angle: 0 to 360 °
Frequency: 50 to 60 Hz
Halogen-free: no
Constant light control: no
HVAC control: yes
Forced shutdown: no
Animal corridor: no
Networkable: yes
Staircase monitoring: yes
Bypass switch: no
Suitable for wireless transmission: no
Remote controllable: yes
With signal unit: no
Alarm function: no
Teach function for response brightness: yes
Dimming function with dimming insert: no
Transparent: no
With remote control: no
Suitable for C load: no
With DALI interface: no
Extension input: yes
Forced switching on: no
Suitable for ceiling mounting: yes
Connection type: Screw terminal
Antibacterial treatment: no
Impact resistance: IK04
Min. Inrush current: 0.1 A
Diameter: 110 mm
Installation width: 48 mm
Installation depth: 40 mm
Installation diameter: 48 mm
Min. depth of device box: 46 mm

Characteristics

ColorWhite
Bridging switchNo
With signal unitNo
Response brightness5 to 3000 lx
Forced shutdownNo
Max. inrush current10 A
Scanning angle360 °
Forced switching onNo
Max. presence range25 m²
ManufacturerTHEBEN
HAN2070605
GTIN7612748005563
Dimming function with dimming insertNo
Alarm functionNo
Connection typeScrew terminal
Response sensitivity adjustableYes
Response brightness adjustableYes
Antibacterial treatmentNo
VersionPresence detector
Surface finishFrosted
Width110 mm
Diameter110 mm
Installation width48 mm
Installation diameter48 mm
Installation depth40 mm
Detection field diameter on floor8m
Detection angle horizontal0 to 360 °
ColorWhite
Remote controllableYes
Frequency50 to 60 Hz
Suitable for C-loadNo
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionNo
HVAC controlYes
Halogen freeNo
Height77 mm
Constant light controlNo
Max. duty cycle60 min
Max. range frontal4m
Max. range to one side4m
Max. switching capacity2300W
Min. duty cycle10s
Min. depth of the device box46 mm
With DALI interfaceNo
With remoteNo
Mounting typeFlush-mounted
Extension inputYes
Nominal voltage230V
SurfaceUntreated
Optimal mounting height2.5m
RAL number (similar)9010
Impact resistanceIK04
IP protection)IP40
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessYes
Temperature0 to 50 °C
Depth110 mm
Animal corridorNo
TransparentNo
Staircase monitoringYes
Creep protection/rear field monitoringNo
NetworkableYes
MaterialPlastic
Material qualityThermoplastic
