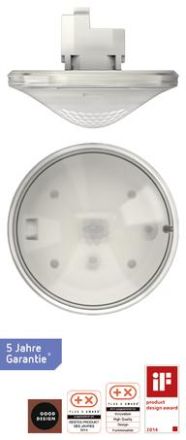

Theben 2070630 Presence detector thePrema S360 Slave E UP WH white

Theben 2070630 Presence detector thePrema S360 Slave E UP WH white

In stock

SKU: 229263

Price on request

€120.42

€0

Overview

Slave presence detector for ceiling mounting, square detection area, can only be used in combination with thePrema as a master

Property	Value
Depth:	110 mm
Width:	110 mm
Height:	77 mm
Design:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Protection class (IP):	IP40
Voltage type:	AC
Max. Range to one side:	4 m
Scan angle:	360 °
Suitable for wall mounting:	no
Creep-under protection/rear field monitoring:	no
Temperature:	0 to 50 °C
Adjustable response brightness:	no
Adjustable response sensitivity:	no
Max. Presence area:	25 m²
Max. Frontal range:	4 m
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	8 m
Horizontal detection angle:	0 to 360 °
Frequency:	50 to 60 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	yes
Staircase monitoring:	yes
Bridging switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	screw terminal
Antibacterial treatment:	no
Impact resistance:	IK04
Min. inrush current:	0.1 A
Diameter:	110 mm
Installation width:	48 mm
Installation depth:	40 mm
Installation diameter:	48 mm
Min. depth of device box:	46 mm

Characteristics

ColorWhite

Bridging switchNo

With signal unitNo

Forced shutdownNo

Scanning angle360 °

Forced switching onNo

Max. presence range25 m²

Manufacturer

HAN2070630

GTIN7612748005655

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableNo

Response brightness adjustableNo

Antibacterial treatmentNo

VersionPresence detector

Surface finishFrosted

Width110 mm

Diameter110 mm

Installation width48 mm

Installation diameter48 mm

Installation depth40 mm

Detection field diameter on floor8m

Detection angle horizontal0 to 360 °

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeNo

Height77 mm

Constant light controlNo

Max. range frontal4m

Max. range to one side4m

Min. depth of the device box46 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010

Impact resistanceIK04

IP protection)IP40

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature0 to 50 °C

Depth110 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
