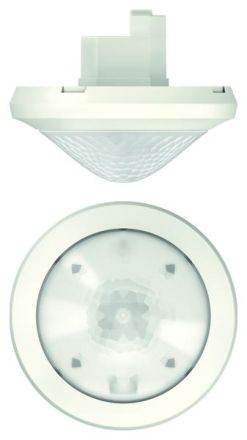

Theben 2080520 theRonda S360-100 UP WH white UP presence detector

Theben 2080520 theRonda S360-100 UP WH white UP presence detector

In stock

SKU: 389679

Price on request

€88.94

€0

Overview

UP presence detector for ceiling mounting, 10 A 230 V, detection range 4 m (for seated people), 8 m (for walking people) at 3 m mounting height, mounting height up to 4 m, light switching output: 2300 W, run-on time: 10 s-60 min, 1 button/switch input, fully or semi-automatic operation switchable, teach-in function, remote controllable, light measurement 10-3000 lux, sensitivity adjustable, operating voltage 110-230 V AC, 50/60 Hz, power consumption 0.1 W, protection class IP 54, white housing

Property	Value
Depth:	110 mm
Width:	110 mm
Height:	83 mm
Design:	Presence detector
Color:	white
Rated voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 3000 lx
Protection class (IP):	IP54
Max. switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	4 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	10 s
Max. Duty cycle:	60 min
Creep-under protection/rear field monitoring:	no
Temperature:	-15 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence range:	13 m²
Max. frontal range:	4 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal installation height:	3 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	8 m
Switch-off delay:	3600 s
Switch-on delay:	600 s
Horizontal detection angle:	0 to 360 °
Frequency:	50 to 60 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	yes
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Screw terminal
Antibacterial treatment:	no
Impact resistance:	IK04
Min. Inrush current:	0.1 A
Diameter:	110 mm
Installation width:	48 mm
Installation depth:	37 mm
Installation diameter:	48 mm
Min. depth of device box:	46 mm

Characteristics

ColorWhite

Bridging switchNo

With signal unitNo

Response brightness5 to 3000 lx

Forced shutdownNo

Max. inrush current10 A

Scanning angle360 °

Forced switching onNo

Max. presence range13 m²

HABTheRonda S360-100 UP WH white

Manufacturer

HAN2080520

GTIN7612748006621

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionPresence detector

Surface finishFrosted

Width110 mm

Diameter110 mm

Installation width48 mm

Installation diameter48 mm

Installation depth37 mm

Detection field diameter on floor8m

Detection angle horizontal0 to 360 °

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeNo

Height83 mm

Constant light controlNo

Max. duty cycle60 min

Max. range frontal4m

Max. range to one side4m

Max. switching capacity2300W

Min. duty cycle10s

Min. depth of the device box46 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputYes

Nominal voltage230V

SurfaceUntreated

Optimal mounting height3m

RAL number (similar)9010

Impact resistanceIK04

IP protection)IP54

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-15 to 50 °C

Depth110 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
