ColorWhite
Bridging switchNo
With signal unitNo
Response brightness5 to 3000 lx
Forced shutdownNo
Max. inrush current10 A
Scanning angle360 °
Forced switching onNo
Max. presence range13 m²

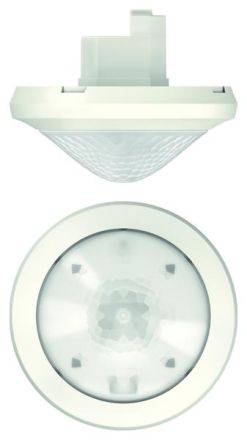

HABTheRonda S360-101 UP WH white
HAN2080525
GTIN7612748006591
Dimming function with dimming insertNo
Alarm functionNo
Connection typeScrew terminal
Response sensitivity adjustableYes
Response brightness adjustableYes
Antibacterial treatmentNo
VersionPresence detector
Surface finishFrosted
Width110 mm
Diameter110 mm
Installation width48 mm
Installation diameter48 mm
Installation depth37 mm
Detection field diameter on floor8m
Detection angle horizontal0 to 360 °
Remote controllableYes
Frequency50 to 60 Hz
Suitable for C-loadNo
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionNo
HVAC controlYes
Halogen freeNo
Height83 mm
Constant light controlNo
Max. duty cycle60 min
Max. range frontal4m
Max. range to one side4m
Max. switching capacity2300W
Min. duty cycle10s
Min. depth of the device box46 mm
With DALI interfaceNo
With remoteNo
Mounting typeFlush-mounted
Extension inputYes
Nominal voltage230V
SurfaceUntreated
Optimal mounting height3m
RAL number (similar)9010
Impact resistanceIK04
IP protection)IP54
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessYes
Temperature-15 to 50 °C
Depth110 mm
Animal corridorNo
TransparentNo
Staircase monitoringYes
Creep protection/rear field monitoringNo
NetworkableYes
MaterialPlastic
Material qualityThermoplastic
