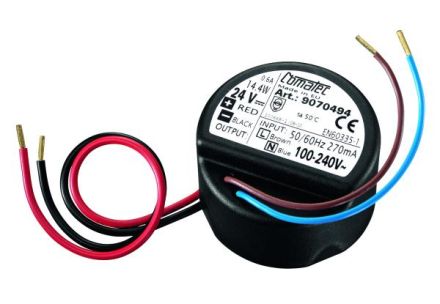

Theben 907 0 494 Power supply transformer for CO2 sensor

In stock

SKU: 229589

Price on request

€88.53

€0

Overview

Power supply unit 24V/12 W for flush-mounted installation under the CO2 sensor.

Property	Value
Installation height:	30 mm
1. Output voltage:	24 V
Type of supply voltage:	AC
Max. Output current 1:	0.5 A
Output voltage adjustable:	no
Rated supply voltage at AC 50 Hz:	230 V
Short-circuit proof:	no
Stabilized:	no
Suitable for safety functions:	no
Direct mounting possible:	yes
Design of the electrical connection:	other
Output voltage regulated:	no
Power consumption:	12 VA
Power output:	12 W
Suitable for series installation:	no
Rail mounting possible:	no
Wall mounting possible:	yes
Protection class (IP):	IP65
Width:	50 mm
Height:	50 mm
Depth:	30 mm
Nominal output voltage 1:	24 V
Nominal output current 1:	0.5 A
Installation width:	56 mm
SIL according to IEC 61508:	without
Protection class (NEMA):	4
