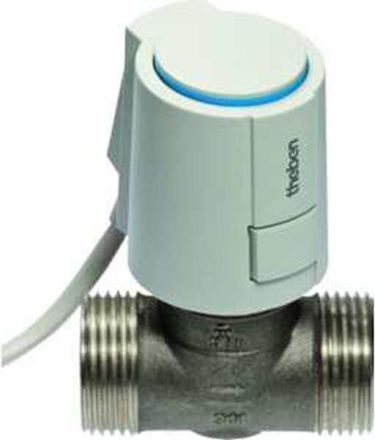

Theben 9070441 Actuator ALPHA 5 230 V for individual room control

In stock

SKU: 229341

Price on request

€37.70

€0

Overview

Actuator (230 V) suitable for heating circuit distributor/radiator valves and RAMSES devices, noiseless, closed when de-energized, length of the connecting cable 1 m, protection class IP 54, plug-in installation on valve adapter, function and adjustment control, dismantling protection through removable SafeGuard, guaranteed overvoltage protection

Property	Value
Height:	44 mm
Width:	60 mm
Depth:	61 mm
Protection class (IP):	IP54
Design:	linear
Suitable for valves:	yes
Suitable for ventilation fittings:	no
Mains voltage:	230 V AC
Control signal:	Two-point
Control type on/off:	yes
Control type modulating:	no
Control type split-range:	no
Length of the connection cable:	1 m
Transmission:	hydraulic
Connection to valve:	without
With head flange direct mount according to ISO 5211:	no
With zero voltage return:	no
Voltage-free when closed:	yes
Automatic stroke detection:	no
Adjustable Status message:	no
Auxiliary contacts:	no
Status message:	without
Auxiliary contacts optional:	no
End contacts:	without
Adjustable working range:	no
With mechanical level indicator:	yes
Manual operation:	no
Running time:	180 s
Potential-free switching contact:	no
Adjustment force:	100 N
Stroke length:	4 mm
Self-adjustable stroke length:	no
Max. angle of rotation:	360 °
With safety function:	no
Protection class (NEMA):	13
Max. Electrical power consumption:	1 VA
Ambient temperature:	0 to 60 °C
Explosion-proof:	no
Housing material:	Plastic
