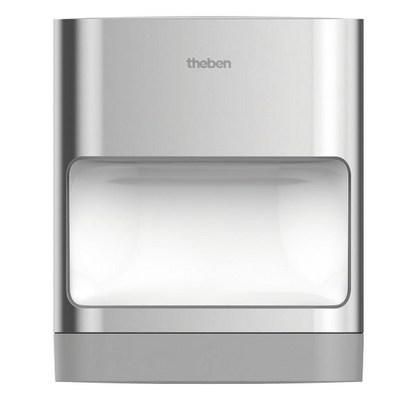

Theben 1020702 theLeda D SUL AL 14 Watt aluminum LED light

Theben 1020702 theLeda D SUL AL 14 Watt aluminum LED light

In stock

SKU: 424701

Price on request

€107.82

€0

Overview

Design-oriented LED light 14 W, light output frontally (spot) and upwards (up), high-quality housing made of anodized extruded aluminum profile, suitable for outdoor use, high protection class IP 55 for outdoor installation, easy installation with plug-in base, can be networked wirelessly, extremely efficient due to high light output, long-lasting LEDs: 50,000 hours service life

Property	Value
Max. System power:	14 W
Rated luminous flux according to IEC 62722-2-1:	1235 lm
Housing color:	Aluminium
Housing material:	Aluminium
Protection class (IP):	IP55
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	65 mm
Width:	126 mm
Height/depth:	127 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	230 V
Beam angle:	wide beam 41-80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	not required
Impact resistance:	IK04
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high gloss
Luminous flux:	1235 lm
Cover material:	transparent plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for Cable system:	no
Surface:	powder-coated
Brushed surface:	yes
LED nominal current at constant current:	0 to 10 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:
Dimming LineSwitch:	no
Dimming manufacturer-specific:	yes
Dimming mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Reflector
Light emission:	direct/indirect
Total harmonic distortion (THD):	27
Protection class (NEMA):	4
Rated ambient temperature according to IEC62722-2-1:	-25 to 45 °C
Type of wiring:	Termination
Power factor:	0.95
Number of poles:	4
Conductor cross-section:	2.5 mm²
Connectable conductor cross-section:	0 to 2.5 mm²
Connection type:	Screw terminal
Luminaire luminous efficacy:	93 lm/W
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Colour consistency (McAdam ellipse):	SDCM6

Characteristics

Total harmonic distortion (THD)27

Connectable conductor cross-section0 to 2.5 mm²

HABTheLeda D SUL AL 14 Watt aluminium

Manufacturer

HAN1020702

GTIN4003468101162

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-11235lm

Rated ambient temperature according to IEC62722-2-1-25 to 45 °C

Operating deviceNot required

Width126 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificYes

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM6

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorAluminum

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth127 mm

LED nominal current at constant current0 to 10 mA

Power factor0.95

Conductor cross-section2.5 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy93lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Luminous flux1235lm

Light distributorReflector

Light distributionSymmetrical

Length65 mm

Max. system performance14W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

SurfacePowder coated

Brushed surfaceYes

Without dimming functionNo

Photobiological safety according to EN 62471RG0

Number of poles4

ReflectorHigh gloss

Impact resistanceIK04

IP protection)IP55

Protection class (NEMA)4

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic transparent

Housing materialAluminum
