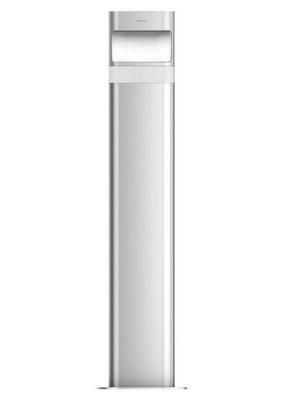

Theben 1020907 theLeda DB plus S AL 8.5W socket alu LED bollard light with motion detector

In stock
SKU: 424703
€183.78
Into a basketIn the basketGo

Overview

Design-oriented LED bollard light long with 8.5 W, light output frontal (spot), with socket on the back of the housing, with motion detector (PIR), high-quality housing made of anodized extruded aluminum profile, automatic lighting control depending on presence and brightness, detection angle 180° with 12 m diameter, optimized for paths, functions teach-in, test, twilight switch, dimmable orientation light and self-calculating night interruption adjustable, adjustable via remote control theSenda S and P, via theSenda B and the app theSenda Plug or via potentiometer on the device, high protection class IP 54 for outdoor installation, networking via radio, setting only possible via theSenda B with theSenda Plug, extremely efficient due to high light output, long-lasting LEDs: 50,000 hours service life, manual control via interrupter button (duration ON 6 h)

Property Value
Cover material: Transparent plastic
Housing color: Aluminum
Impact resistance: IK04
With light source: yes
Protection class: II
Light source: LED not replaceable
Nominal voltage: 230 V
Width: 174 mm
Socket: without
Housing material: aluminum
Protection class (IP): IP54
Type of luminaire: Bollard light
Operating device: not required
Rated luminous flux according to IEC 62722-2-1: 760 lm
Color temperature: 3000 K
Color rendering index CRI: 80-89
Light color: white
With operating device: yes
With motion detector: yes
With light sensor: yes
Voltage type: AC
With base plate: yes
Surface: powder-coated
LED nominal current at Constant current: 0 to 10 mA
Light distributor: Reflector
Protection class (NEMA): 4
Max. System power: 8.5 W
Power factor: 0.95
Height/depth: 721 mm
Length: 90 mm
Type of wiring: Termination
Number of poles: 4
Conductor cross-section: 2.5 mm²
Connection type: Screw terminal

Characteristics

With base plateYes
HABTheLeda DB plus S AL 8.5W socket alu
ManufacturerTHEBEN
HAN1020907
GTIN4003468101513
Connection typeScrew terminal
Type of lampBollard light
Type of wiringDiploma
Rated luminous flux according to IEC 62722-2-1760lm
Operating deviceNot required
Width174 mm
Color temperature3000K
Color rendering index CRI80-89
VersionWithout
Housing colorAluminum
Height/Depth721 mm
LED nominal current at constant current0 to 10 mA
Power factor0.95
Conductor cross-section2.5 mm²
LampsLED not replaceable
Light colorWhite
Light distributorReflector
Length90 mm
Max. system performance8.5W
With operating deviceYes
With motion detectorYes
With light sourceYes
With light sensorYes
Nominal voltage230V
SurfacePowder coated
Number of poles4
Impact resistanceIK04
IP protection)IP54
Protection class (NEMA)4
Protection classII
Voltage typeAC
Cover materialPlastic transparent
Housing materialAluminum
