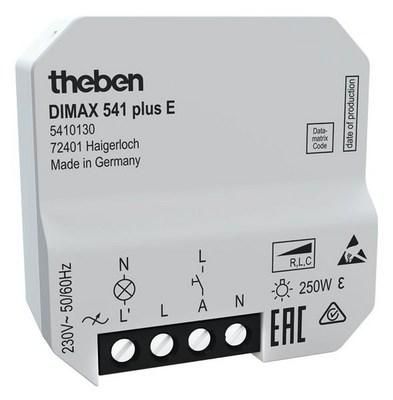

Theben 5410130 DIMAX 541 plus E for ESL/LED 230V UP universal dimmer

In stock
SKU: 424716
€43.46
Into a basketIn the basketGo

Overview

UP universal dimmer for R, L and C loads with automatic load detection, optimized settings for LEDs, incandescent lamps and energy-saving lamps, switch-on brightness can be individually saved, comfort setting with wake-up and snooze function (e.g. for children's rooms)

Property Value
Device height: 44 mm
Device width: 44 mm
Device depth: 19 mm
Connection type: Screw terminal
Wire cross-section: 0.5 to 2.5 mm²
Mounting type: Flush-mounted
Dimming leading edge: yes
Dimming trailing edge: yes
Nominal voltage: 230 V
Color: white
Suitable for protection class (IP): IP20
Operating type: other
Halogen-free: yes
Composition: Basic element
Load type: universal and LED retrofit
Series dimmer: yes
Extension input: yes
Light value memory: yes
Can be used with button: yes
Can be used with motion detector: yes
Can be used with presence detector: yes
Can be used with timer: yes
Can be used with radio button: no
Can be used with IR button: no
Mounting type: other
Material: plastic
Material quality: thermoplastic
Surface: untreated
Surface finish: matt
RAL number (similar): 1013
Frequency: 50 Hz
Control voltage: 8 to 230 V
Transparent: no
App control via Bluetooth: no
Impact resistance: IK04
Min. depth of the device box: 20 mm

Characteristics

Core cross-section0.5 to 2.5 mm²
HABDIMAX 541 plus E for ESL/LED 230V
ManufacturerTHEBEN
HAN5410130
GTIN4003468540022
Connection typeScrew terminal
Surface finishFrosted
Operating modeOther
Mounting typeOther
Dimming trailing edgeYes
Dimming phase controlYes
ColorWhite
Frequency50Hz
Suitable for protection class (IP)IP20
Device width44 mm
Device height44 mm
Device depth19 mm
Halogen freeYes
Min. depth of the device box20 mm
Mounting typeFlush-mounted
Extension inputYes
Nominal voltage230V
SurfaceUntreated
RAL number (similar)1013
Impact resistanceIK04
TransparentNo
MaterialPlastic
Material qualityThermoplastic
CompilationBasic element
