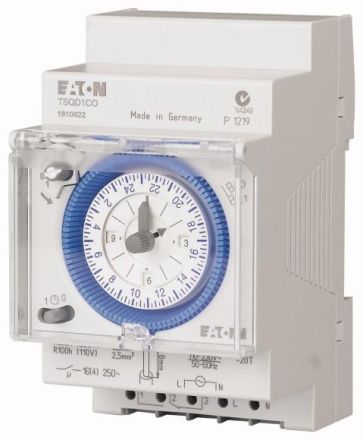

Eaton TSQD1CO Analog time switch, quartz, day, 1 channel, 167390

In stock
SKU: 218901
€84.97
Into a basketIn the basketGo

Overview

Series-mounted timer with approx. 200 hours power reserve, width 52.5 mm, 24 hour program, shortest switching time 15 min., clock hand for time display and 12h/24h detection, time correction clockwise and anti-clockwise possible, switching preselection, manual switch with 3 positions: permanent ON/AUTO/permanent OFF, switching status display, DuoFix spring plug terminals for 2 conductors each, 1 changeover contact 16A/250V~, 230V /45-50 Hz, transparent cover can be sealed.

PropertyValue
Width in modular units:3
Number of channels:1
Protection class (IP):IP20
24 h program:yes
Manual operation:yes
Supply voltage:110 to 230 V
Mounting type:DIN rail
Type of supply voltage:AC
Frequency of supply voltage:45 to 60 Hz
Shortest switching time channel 1:15 min
Contact design:changeover contact
Power reserve in hours:200
Accuracy per day:1 s
Mains synchronous:no
Weekly program:no
Rated switching current at 250 V AC:16 A
Annual program:no
Quartz-controlled:yes
Automatic summer/winter time changeover:no
Height:90 mm
Width:54 mm
Depth:65.6 mm
Program disc division 1:15 min
Switching preselection:yes
Potential-free switching contact:yes
60 min program:no

Characteristics

Type of voltage of the supply voltageAC
Supply voltage110 to 230 V
Number of channels1
HABTSQD1CO
ManufacturerEaton
HAN167390
GTIN4015081639205
Width54 mm
Width in pitch units3
Height90 mm
Mounting typeDIN rail
IP protection)IP20
Depth65.6 mm
Supply voltage110 to 230 V
