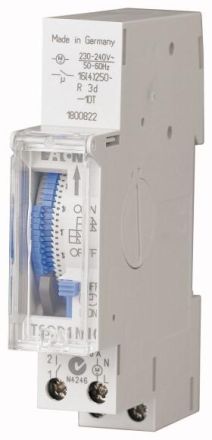

Eaton TSQD1NO Analog timer, quartz, day, 1 channel, 167388

In stock

SKU: 218902

Price on request

€74.59

€0

Overview

Series-mounted timer with approx. 3 days power reserve, width 17.5 mm, 24-hour segment prog., shortest switching time 15 min., permanent switch ON/OFF, 1 normally open contact 16A 250V~, transparent cover can be sealed.

Property	Value
Width in pitch units:	1
Number of channels:	1
Protection class (IP):	IP20
24 h program:	yes
Manual operation:	yes
Supply voltage:	230 to 240 V
Mounting type:	DIN rail
Type of supply voltage:	AC/DC
Frequency of supply voltage:	45 to 60 Hz
Shortest switching time channel 1:	15 min
Contact design:	Normally open
Power reserve in hours:	72
Accuracy per day:	1 s
Mains synchronous:	no
Weekly program:	no
Rated switching current at 250 V AC:	16 A
Annual program:	no
Quartz-controlled:	yes
Automatic summer/winter time changeover:	no
Height:	90 mm
Width:	17.5 mm
Depth:	65.5 mm
Program disc division 1:	15 min
Switching preselection:	no
Potential-free switching contact:	yes
60 min program:	no
