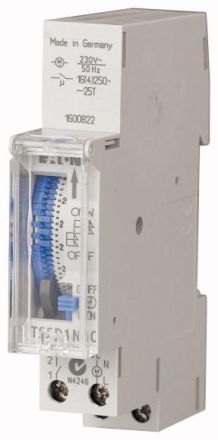

Eaton TSSD1NO Analog time switch, synchronous, day, 1 channel, 167389

In stock
SKU: 218905
€61.02
Into a basketIn the basketGo

Overview

Modular timer without power reserve, width 17.5mm, 24 hour segment program, shortest switching time 15 min., permanent switch ON/OFF, 1 normally open contact 16A/250V~, transparent cover can be sealed.

PropertyValue
Width in pitch units:1
Number of channels:1
Protection class (IP):IP20
24 h program:yes
Manual operation:yes
Supply voltage:230 V
Mounting type:DIN rail
Type of supply voltage:AC
Frequency of supply voltage:50 Hz
Shortest Switching time channel 1:15 min
Contact design:Normally open
Mains synchronous:yes
Weekly program:no
Rated switching current at 250 V AC:16 A
Annual program:no
Quartz-controlled:yes
Automatic summer/winter time changeover:no
Height:90 mm
Width:17.5 mm
Depth:65.5 mm
Program disc division 1:15 min
Switching preselection:yes
Potential-free switching contact:yes
60 min program:no

Characteristics

Type of voltage of the supply voltageAC
Supply voltage230 V
Number of channels1
HABTSSD1NO
ManufacturerEaton
HAN167389
GTIN4015081638888
Width17.5 mm
Width in pitch units1
Height90 mm
Mounting typeDIN rail
IP protection)IP20
Depth65.5 mm
Supply voltage230V
