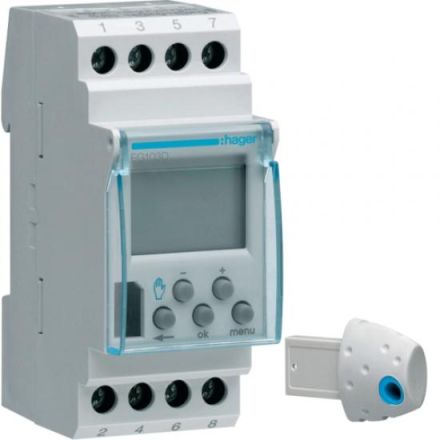

Hager EG103D weekly timer 1W/16A 2PLE digital

In stock
SKU: 159340
€139.06
Into a basketIn the basketGo

Overview

Weekly timer, 1 changeover contact, 16A, 2 PLE, digital, DCF77. Weekly timer digital 1-channel for time-dependent control of operating resources. With programming key for easy implementation of exception programs. With random control and pulse output, display lighting, temporary and permanent exception control on the device, bar display for quick recognition of daily programming, automatic summer/winter time changeover. Notes: Connection terminals for DCF receivers.

Property Value
Width in division units: 2
Number of channels: 1
Protection class (IP): IP20
Supply voltage: 195 to 264 V
Weekly program: yes
Mounting type: DIN rail
Voltage type of Supply voltage: AC
Frequency of supply voltage: 50 Hz
Text guidance in display: no
24 h program: no
60 min program: yes
Automatic summer/winter time change: yes
Shortest switching time channel 1: 1 min
Holiday program: yes
Pulse program: yes
Cycle program: no
External button input: no
Random program: yes
Operating hours counter: no
Mains synchronous: no
Quartz controlled: yes
Radio controlled: yes
Shortest switching time channel 2: 1 min
Manual operation: yes
Number of memory locations: 56
Switching preselection: no
Rated switching current at 250 V AC: 16 A
Potential-free switching contact: yes
Width: 35 mm
Height: 85 mm
Depth: 64 mm
External programming: yes
Radio controlled (DCF77): yes
GPS: no
With memory card: no

Characteristics

Type of voltage of the supply voltageAC
Supply voltage195 to 264 V
Number of channels1
ManufacturerHAGER
HANEG103D
GTIN3250612279951
Width35 mm
Width in pitch units2
Height85 mm
Mounting typeDIN rail
IP protection)IP20
Depth64 mm
Supply voltage195 to 264 V
