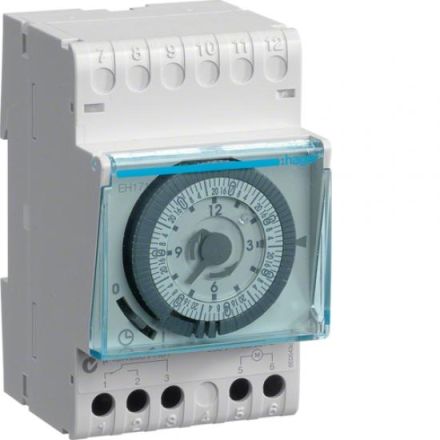

Hager EH171 weekly timer 1W/16A 3PLE analog

In stock

SKU: 159343

Price on request

€112.29

€0

Overview

Electromechanical timer with power reserve, weekly timer 1W 16A. Electromechanical weekly timer for time control of operating resources, mounting on top hat rail, switching steps at 2 hour intervals with power reserve.

Property	Value
Width in division units:	3
Number of channels:	1
Protection class (IP):	IP20
24 h program:	no
Manual operation:	yes
Supply voltage:	230 V
Mounting type:	DIN rail
Type of supply voltage:	AC
Frequency of supply voltage:	50 Hz
Shortest switching time channel 1:	120 min
Contact design:	Changeover contact
Power reserve in hours:	200
Accuracy per day:	1 s
Mains synchronous:	no
Power reserve in years:	0.022
Weekly program:	yes
Shortest switching time channel 2:	120 min
Nominal switching current at 250 V AC:	16 A
Annual program:	no
Quartz-controlled:	yes
Automatic summer/winter time change:	no
Height:	90 mm
Width:	54 mm
Depth:	60 mm
Program disc division 1:	120 min
Program disc division 2:	120 min
Switching preselection:	no
Potential-free switching contact:	yes
60 min program:	no
